Product Introduction
Automatic paper bag stringing machine can realize automatic bag conveying ,non-stop bag adding,punching,plstic head wrapping ,thread roping ,bag counting ,automatic alarming functions etc.It can adjust the sizes,height and hole distance of bags. The hole size can be applicable to the current market 3 strands rope, elastic string ,ribbon products etc.It can adjust the length of rope which directly saves the cost and improves the efficiency .This machine combines the traditional rope wraps the plastic head way and threading rope organically .Automatic counting function makes the packaging more conveniently .
Technical Parameters
Bag width | 160-440mm |
Bag face height | 150-440mm (for 128gsm bag, the maximum height is 400mm ) |
Paper thickness of paper bag | 128-300gsm |
Top reinforced paper with bag top folding | Max.750 gsm |
Hole space for rope threading | 70-160mm |
String hole size | 4-6mm |
Hand rope length | 280-420mm for each piece of hand rope |
Machine size | 3000*1800*2000mm |
Max. machine speed | 45bags/min |
Compressed air | 4-6Pa |
Machine weight | 1.8T |
Working power | 5KW |
Applicable rope | Cotton rope , three standard rope , ribbon rope |
Remark
1. The hole distance ＜ the bag width size – bag gusset size ;
2. The bag height size – bag gusset size ＞ 40mm;
3. The height which is less than 150mm can be customized.

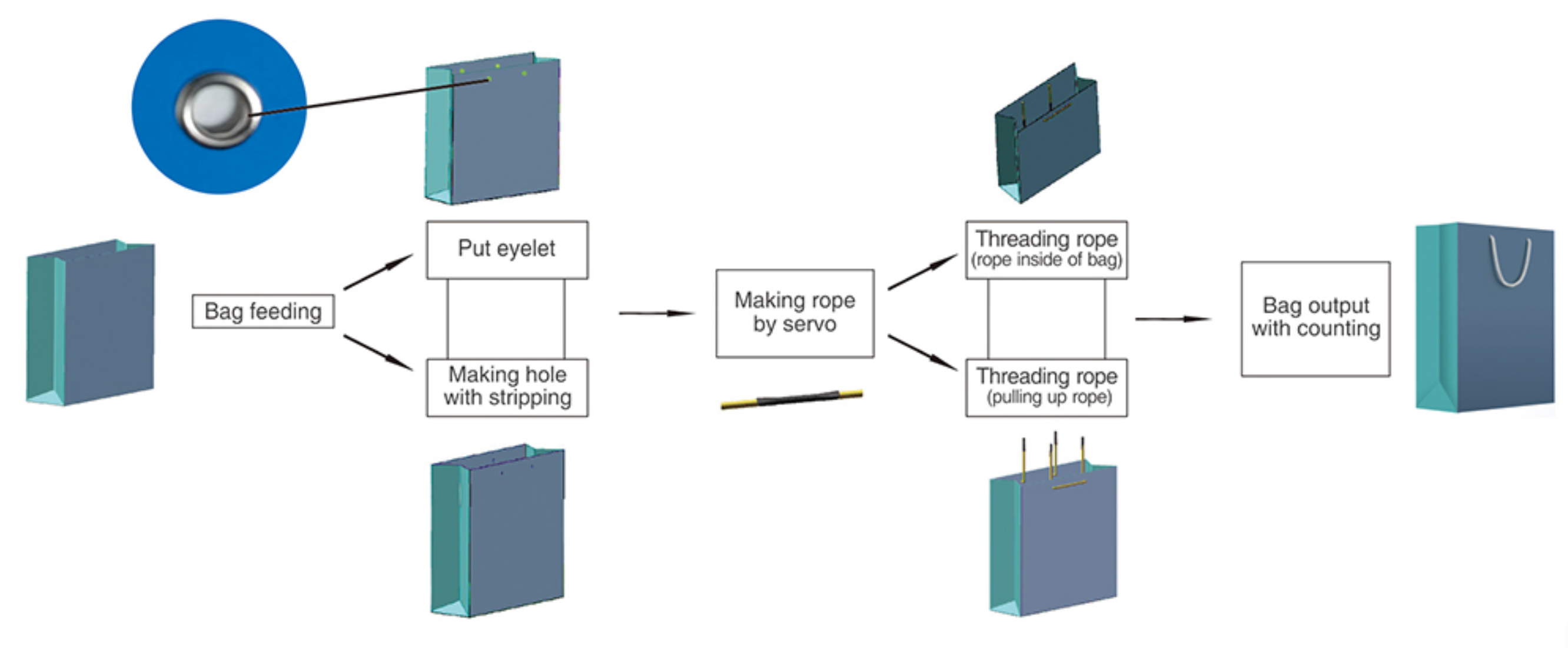

Working Flow
