Product Introduction

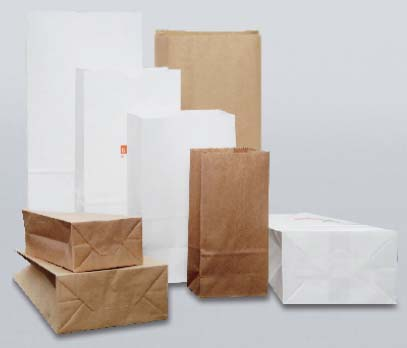

The SBE series, SOS paper bag producing machines are designed for emerging markets. The machines are suitable for Kraft and coated paper to make square bottom paper bags. They use roll paper as unwinding material. Side gluing, folding, tube forming, cutting, bottom folding and gluing to output of finished bag, all done in one continuous work-flow.
Available options to further save cost and increase the bag value include: handle cutting and patching, window cutting and patching as well as in-line flexographic printing.
Machine Features
Hydraulic unwinding unit with air shaft, automatic feeding and lock, power brake for tension and web guiding.
Feeding of roll-paper controlled by servo drive system.
Photoelectric tracking of printed material.
Motion controller for high speed, accurate running control.
Auto counting for convenient collecting and counting.
Safety devices to ensure operational safety.
Multi-functional touch-screen interface for easy operation
Specifications
Technical Info | SBE-180 | SBE-290 | SBE-460 |
Max. paper roll width | 600mm | 930mm | 1300mm |
Paper roll diameter | ≤1400mm | ≤1500mm | ≤1500mm |
Paper roll core diameter | Φ76mm | Φ76mm | Φ76mm |
Paper thickness | 45-120gsm | 60-160gsm | 80-160gsm |
Cut off length | 190-370mm | 270-500mm | 270-500mm |
Bag body width | 80-180mm | 120-280mm | 260-450mm |
Bag bottom size | 50-100mm | 60-160mm | 80-180mm |
Max. speed | 200bags/min | 180bags/min | 150bags/min |
Total power | 10kw | 13kw | 15kw |
Machine weight | 4500kg | 6500kg | 9000kg |
Machine size | 7.7x2.1x1.7m | 8.6x2.2x1.8m | 9.6x2.5x1.8m |
Machine speed may be influenced by paper weight, quality, bag size, glue, operator skill etc.
Bag Max. or Min. size is affected by different size combination. We reserve the rights of final interpretation.
