Product display

HB800 Hamburger Box Machine

  • Details
  • Specification parameters
  • Samples

Product Introduce

HB-800 paper carton erecting machine is an ideal choice to produce hamburger boxes,chips boxes,take away box,etc.It adopts micro-computer,PLC,servo feeding,alternating current frequency converter ,the vacuum-sucking,auto gluing,automatic paper tape counting,chain drive.All of these main parts and electric control system adopts famous brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation


Technical Specification



Type

HB-800

Production capacity:

50-200 pcs/min

Suitable Material:

200-600gsm

card paper,PE coated paper,

kraft paper, corrugated paper

Paper open length:

L100-450mm,degree:5°-40°

Paper open width:

B100-600mm

Height H15-200mm

Total Power:

5KW

Weight:

1.8T

Dimension:

3600 x1600 x 1700 mm

Power source

380V 50HZ

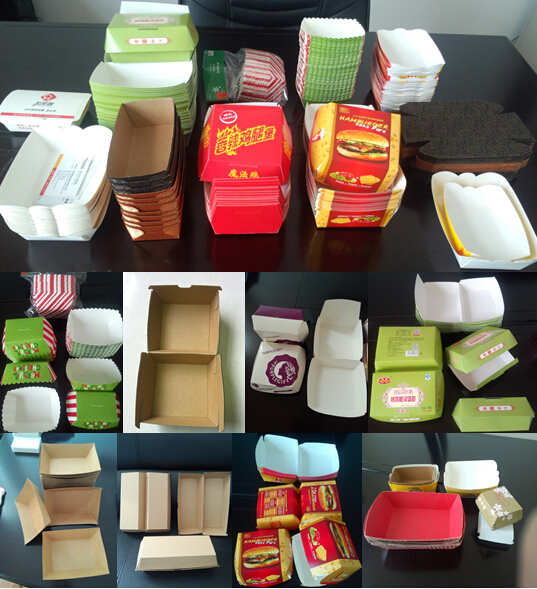

Samples
