Product Introduction
The brand new SF450TB automatic paper bag making machine is suitable for high volume paper bag production with blank or creased sheet paper. Equipped with PLC control, frequency controlled speed adjustment as well as remote control.
Automatic non-stop paper feeding, register/positioning, vertical- and horizontal creasing,
top reinforcement carton gluing and pasting, top folding, side gluing, tube/gusset forming, square bottom folding and pasting, bottom cardboard inserting , automatic counting as well as compaction output unit, all in one uninterrupted work-flow.
Numerous innovative and patented features provide a unique, cost-saving, high level of automation:
Automatic top folding using insert pasting joint type for a strong, premium bag.
Automatic insertion of top reinforcement carton, saving labor and time to manually insert and glue top reinforcement cartons.
Automatic insertion of bottom cardboard, saving labor and time to manually insert bottom cardboard and make the bag with strong loading.
Four pieces top reinforcement carton is an option to past 4 pieces cartons at both sides of the top folding line to supply a stronger and uniform top folding.
Servo driven adjustment of forming plates is an option to greatly save time and cost by reducing the set-up and change over times.
Bottom folding to edge pasting reverse side for an unbroken side gluing. Premium appearance and robustness for high load carrying capacity.
Standard with Nordson hot melt glue system and water soluble cold glue, this machine is well suited to produce gift- and shopping bags for wine or other bottles, dairy products etc.

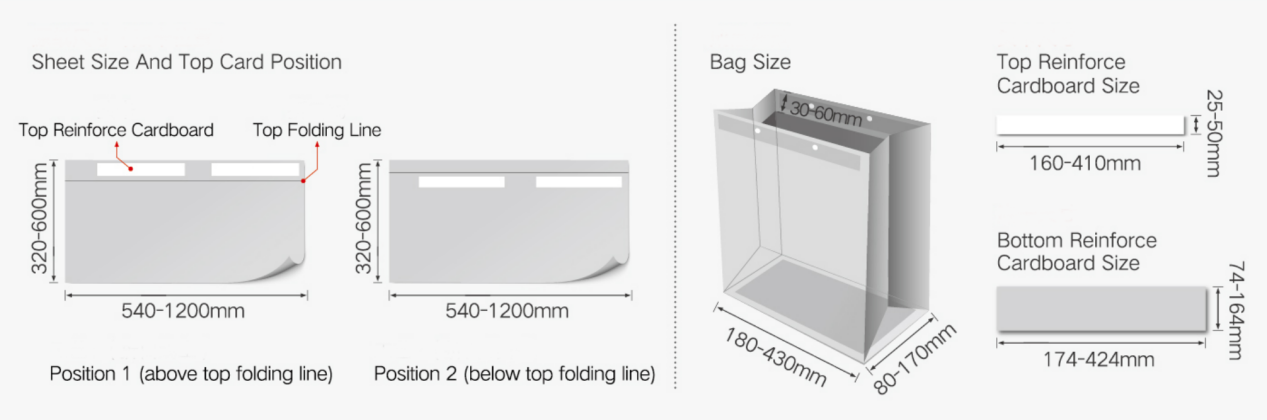

Suitable paper
Art paper ,special paper , ivory board paper.
Over 170gsm paper need die cutting in advance
Option
4 pcs of top reinforced cardboard function
