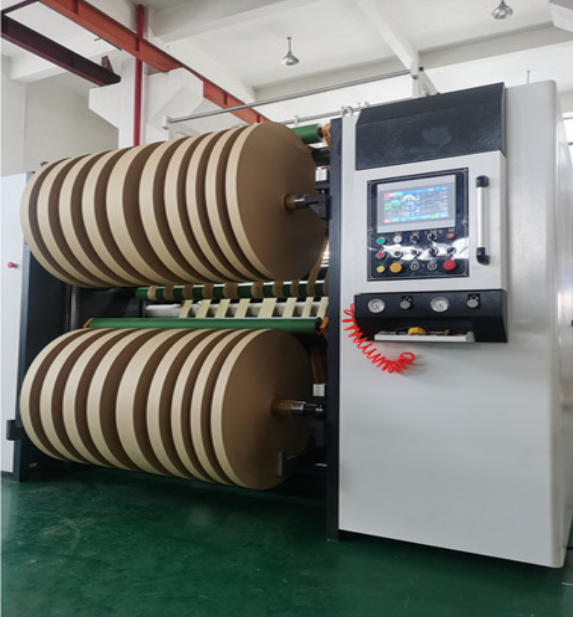

RPS series Roll to Roll Paper Slitting Machine

Details
Specification parameters
Samples

Product Introduction

This series machine is suitable to cut paper from 20-400gsm. It equips with automatic stripping by blowing device and automatic unloading device . Hydraulic shaftless unwinding unit can be option .

Technical Parameters

Model	RPS-1300	RPS-1600	RPS-1800
Maximum width of unwinding	1300mm	1600mm	1800mm
Maximum diameter of unwinding	Φ1400mm	Φ1400mm	Φ1400mm
Minimum width of slitting	30mm	30mm	30mm
Maximum diameter of winding	Φ1000mm	Φ1000mm	Φ1000mm
Speed of slitting	≤350m/min	≤350m/min	≤350m/min
Total Power	24kw	26kw	30kw
Power supply	380v/50hz	380v/50hz	380v/50hz
Size and Weigh	4000kg	4500kg	5500kg
Overall dimension (LxWxH)	330031501930mm	330034501930mm	33036501930mm

Finished Product Photos
